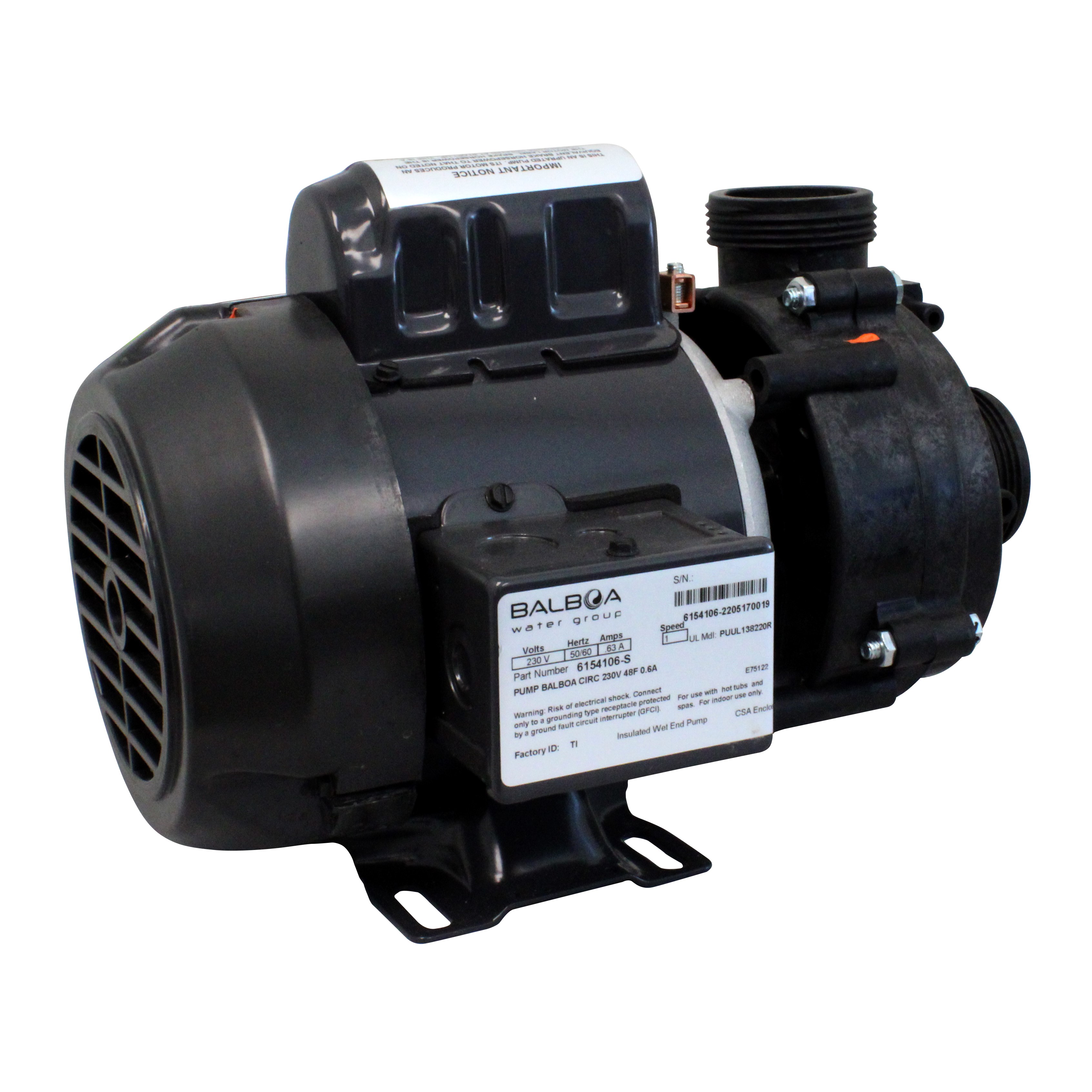

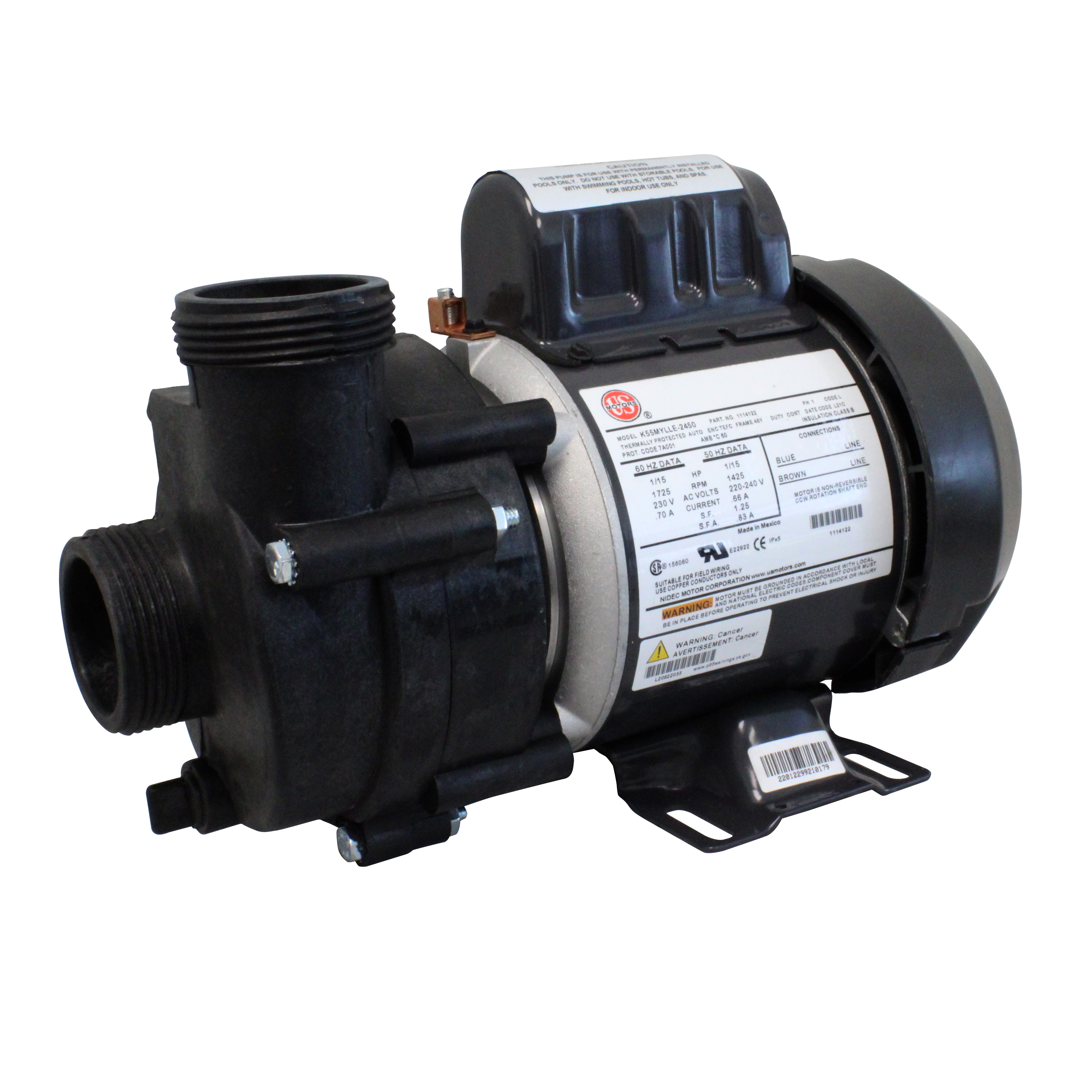

Balboa Spa Circulation Pump - 230V

PN 6154106-S

Replaces PN: 1070125U & 1070056 (1/4HP)

Balboa UltraJet 1/15 HP circulating 230VAC Hot Tub
Pump, Ultra Quiet!

Comes with 1.5" pump unions

This ultra quiet hot tub pump circulation pump is one of the most energy efficient pumps on the market. Balboa's Circulation pumps combines the best of two technologies—the proven reliability of the Ultima pump wet end and the dynamic WOW motor that revolutionized the bath market. The high flow circ pump provides up to 67 gallons per minute flow while operating while drawing only .63 amp. These pumps are ideal for whirlpool applications where quiet efficient running circulation is needed. This pump is designed as a circulation pump and used in spas that have a circulation system. It is 1/15 HP single speed and runs off 230 VAC. The low speed circulating pump is used in 2 pump configurations and moves water quietly and continuously through the heating and filter system.

Safety features include auto shut off protection in case of plugged suctions and high heat limit overload protection.

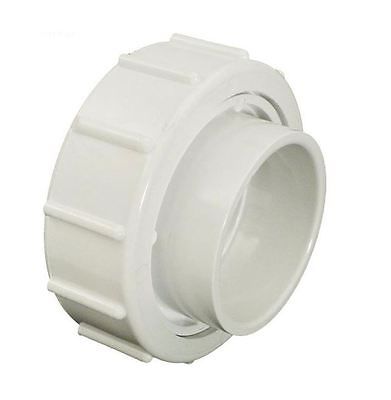

Comes complete with two x 1 1/2" replacement unions that can be easily be expanded to fit larger 2" standard PVC plumbing. Included is a hygienic drain plug that ensures no water is left in the pump body during storage, also preventing freeze damage where applicable. Also included with every UltraJet pump head is their unique venturi by pass ports. By drilling out the inside of these ports water can be by passed and used with accessories such as pump heat jackets or ozone systems.

The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor.

Comes with 1 1/2" pump unions

   Specifications:

• amps = .63 amps
• rpm = 1725 rpm
• HP = 1/15 HP
• 230 VAC 60 Hz, 1 speed
• frame = 48 short
• length = 10.5"
• height = 7.5"
• port opening = 1 1/2"
• warranty = 2 years
