Balboa Circ Spa System - 1/15 HP Circulation Pump, 1.5 Kw Heater, 50 ft

Balboa Circ Spa System - 1/15 HP Circulation Pump, 1.5 Kw Heater, 50 ft


              Balboa Spa System - 1/15 HP Circulation Pump, 1.5 Kw Heater, 50 ft filter Complete Balboa Spa Pack System Comp Read More
  • Shipping Weight: 18kgs
  • Manufactured by: Balboa
0 Units in Stock
 Sold Out








Item Description

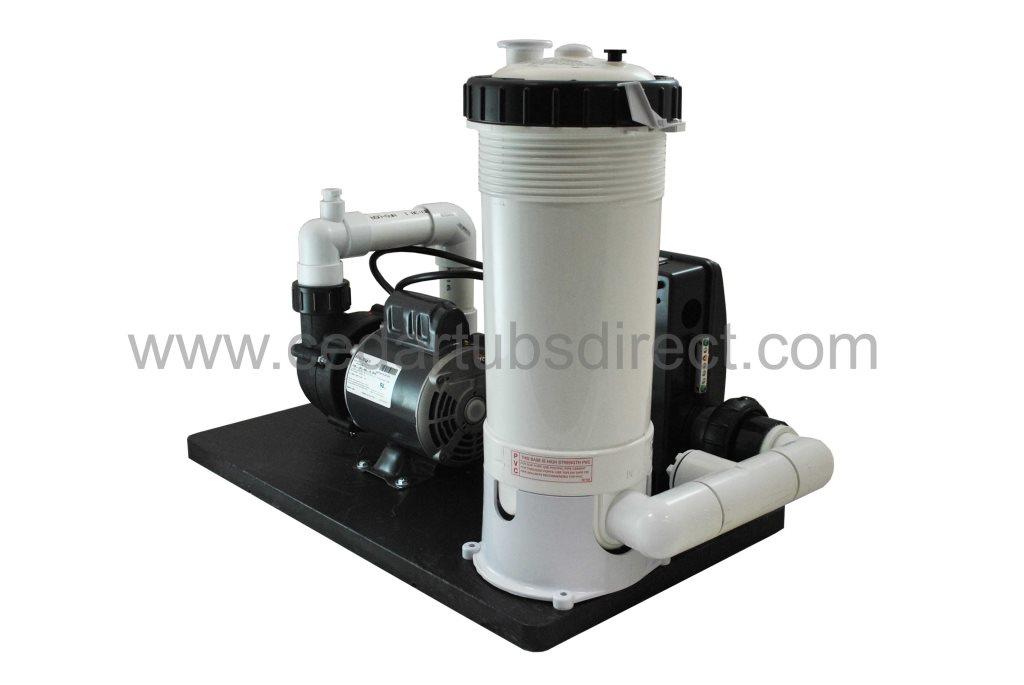

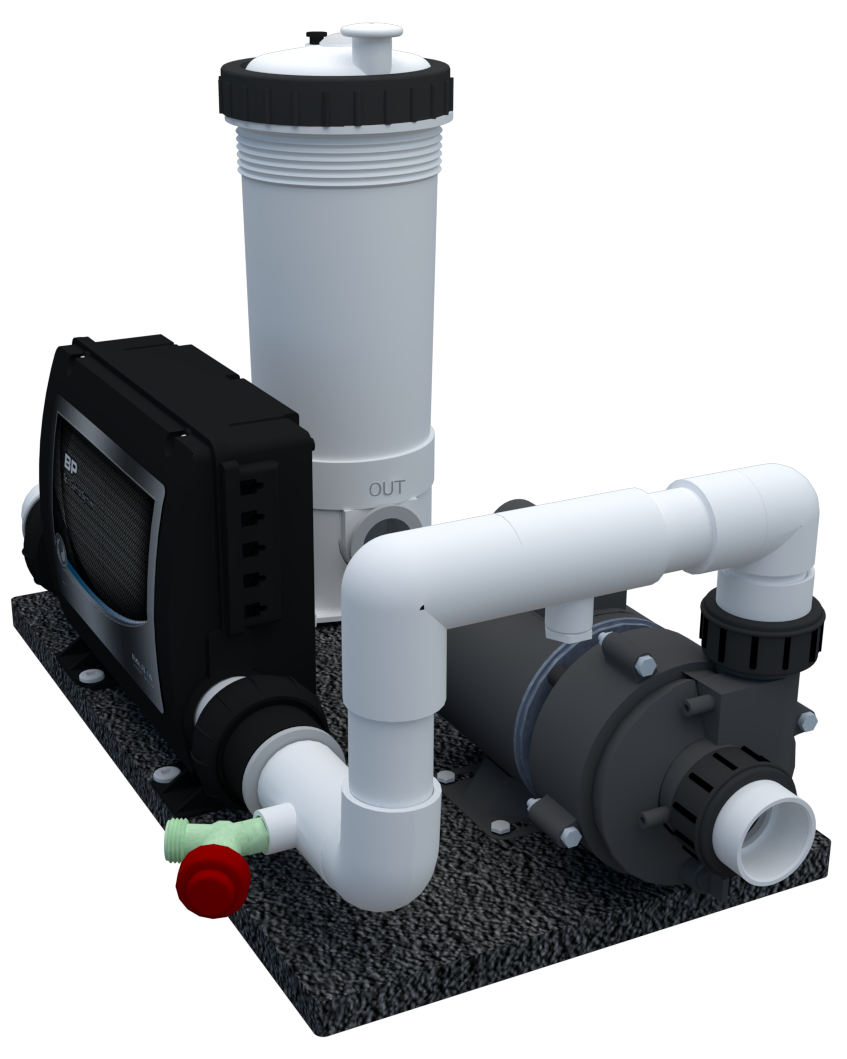

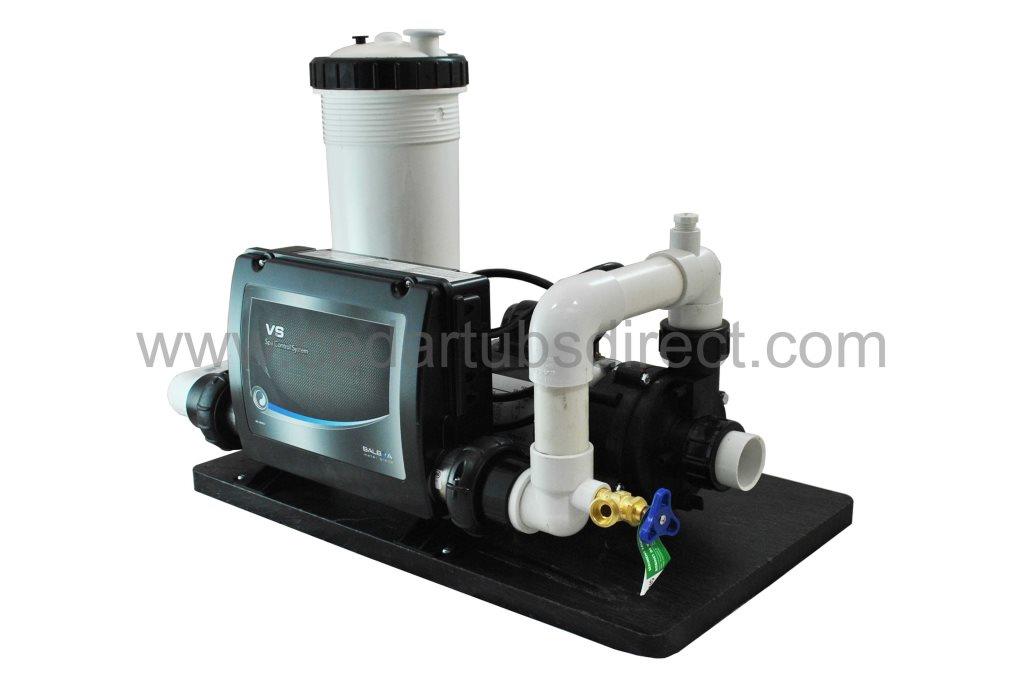

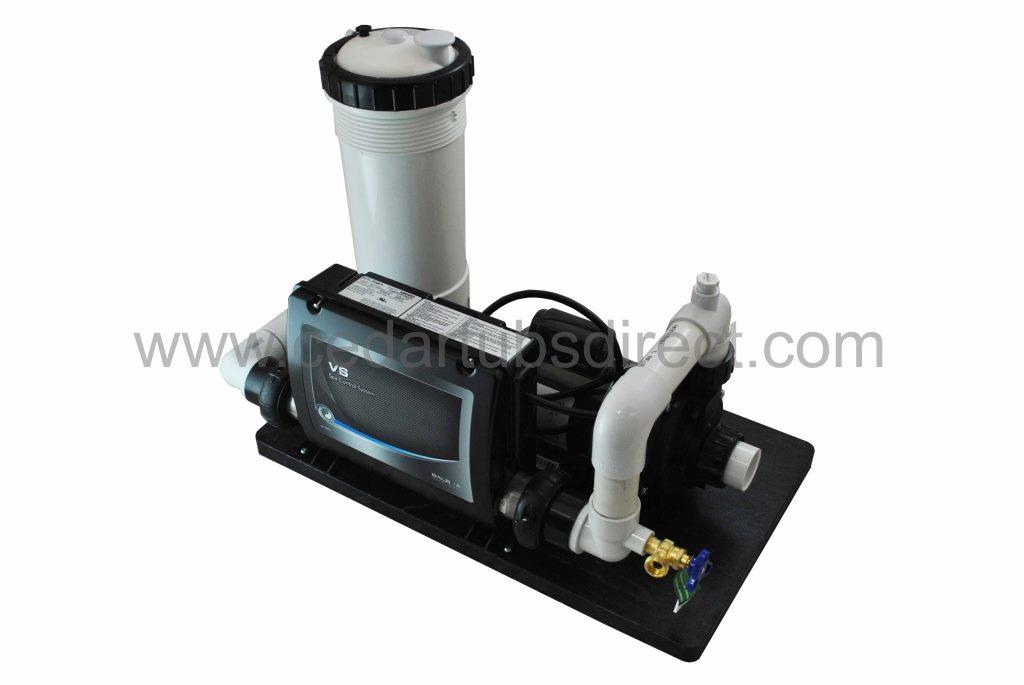

Balboa Spa System - 1/15 HP Circulation Pump, 1.5 Kw Heater,

50 ft filter

Complete Balboa Spa Pack System
Complete with 1.5 Kw Heater, 1/15 HP Circualation Pump, 50 ft filter
PRE-Wired and Plumbed for 110-120 VAC!


Balboa Spa Circulation System - 110 VAC


Time to upgrade your old spa pack hot tub heater? Pump Acting up?

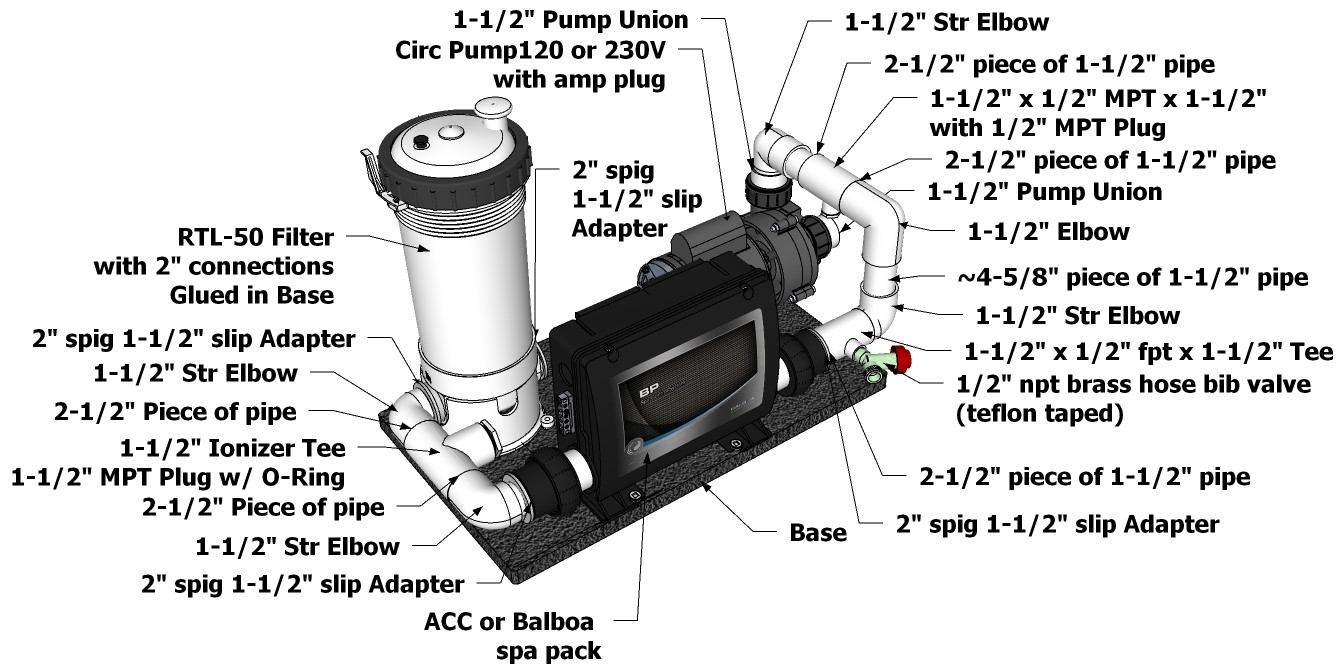

Replace your entire spa hardware with a brand new Balboa Spa System. This system included every thing you need pre-wired and plumbed on a plastic skid pad ready to go.

This system includes:

• Balboa VS501z spa pack with LCD controller.
• Balboa (Pentair) 1/15 HP circulation pump pre-wired to controller 110 VAC
• 50 square ft hi efficiency filter
• Light Kit harness with bulb
• all 1 1/2" plumbing connections
• Built in drain valve

The easiest way to update your entire hot tub! Simply attach the return suction line and the jet discharge to the existing spa and you will have a brand new energy efficient spa system.

The complete system comes in a small foot print measuring 29" length 15" width 21" high. Can be installed remotely or under a deck. Includes 8 ft extension cable for Digital top side controller.


• LCD Top Side controller
• Optional blower controller
• 1.5 Kw heater
• Programmable features
• Quiet Energy efficient circulation pump
• Small foot print

Built in programmable features such a cycle programming, sleep mode, economy mode and self diagnosis are just some of its features. Weather freeze ups are eliminated with the built in freeze protection system. It can be run off a  20 Amp GFCI breaker.

Comes complete with:

• VS501Z pack including Stainless Steel portable heater with 2" heater tail pieces
• VL401 LCD 4-button light duplex digital control
• 110 VAC 1/15 HP speed Balboa Ultimax Pump
• One 3-wire pump/blower cable with AMP plug for optional blower or second pump
• One 12 volt light wiring assembly with AMP plug
• One loose 4-pin AMP plug with pins ( to adapt a non-Balboa ozonator)
• Plasticized control instruction sheet; complete instruction manual for retrofit situations produced by Northern Lights.
• 50 ft2 high efficiency filter
• drain faucet valve for garden hose attachment
• 1 1/2" piping for better flow.


balboa circ pump
Balboa UltraJet 1/15 HP Circulating Pump

Balboa VL401 LCD controller

If you are looking for the best most reliable tub replacement system on the market, then Balboa VS501z with M7 technology it is. Their unsurpassed reliability is why Balboa is the world leader in Spa Pack manufacturing both in quality and reliability.


balboa instruments



Our on-staff engineer means you get much more than just a quality product when you buy from us. Our engineer will help you before your purchase as well as during installation and will always be there for ongoing support after wards, FREE OF CHARGE! Call us or email us and you will quickly see our difference!
