4 HP Spa Pump - Vico Ultimax by UltraJet/Balboa Niagara Hot Tub Pump -230 VAC

$439.08

Add to Cart:

Ask a question

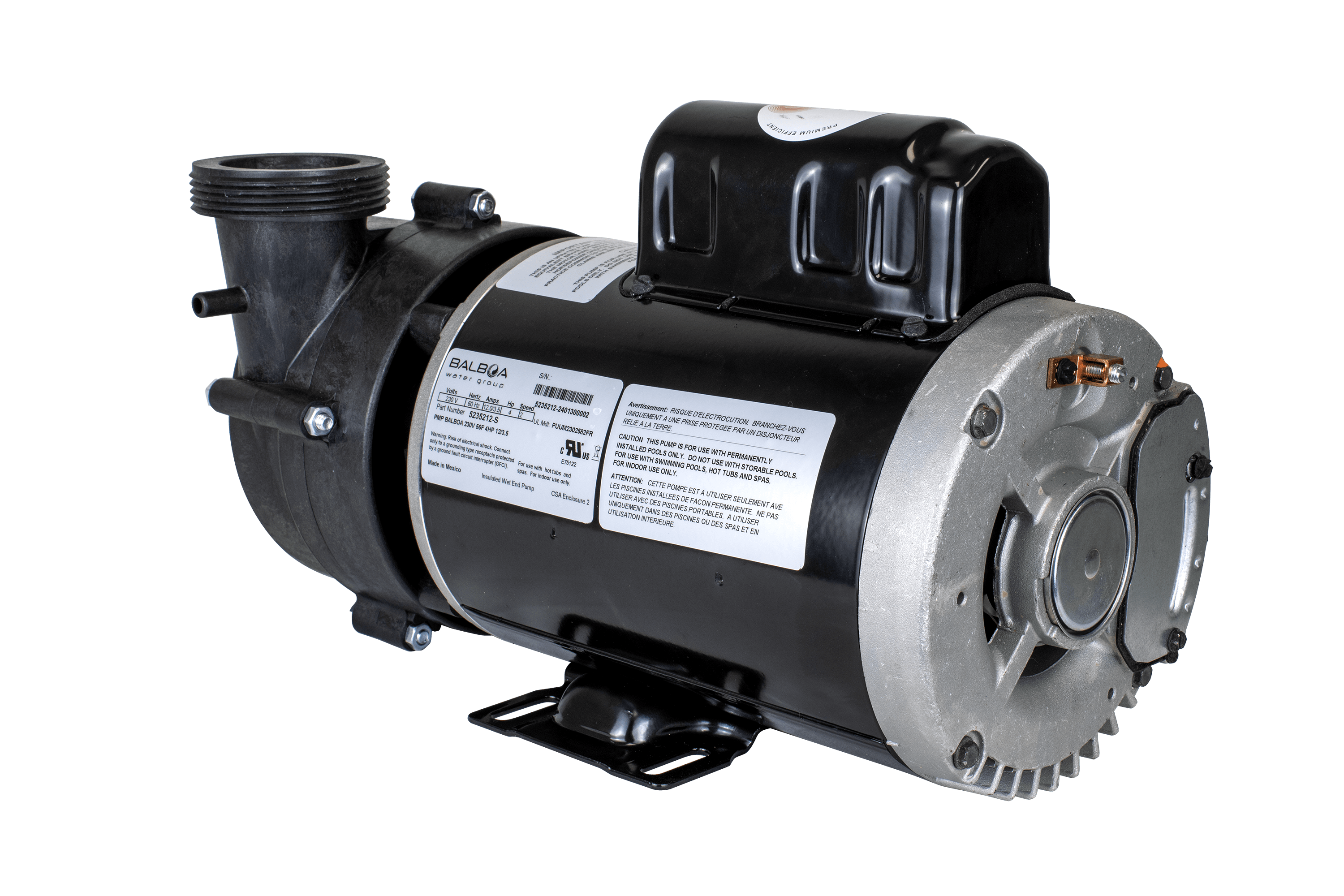

4 HP 2-Speed Spa Pump 240 volts – Balboa Ultimax Niagara



Ultimax_dm

3450/1725 RPM, Frame 56, 16.4/4.1 Amp motor, 2” side discharge wet end

Formerly marked as Ultima model by UltraJet, Vicco, Pentair and Balboa

Can also be used as a 1-speed 4 HP pump



Premier Niagara pumps are the ultimate benchmark in design
flexibility and performance. From small applications for zone
seating and focused therapy up to multi pump configurations
to run 100+ jetted systems, Niagara pumps supply the specific performance features you require and the long service life
and powerful performance spa owners demand.

Niagara pumps offer the options you need...an energy-efficient
package, unsurpassed design flexibility, ease of installation,
high flow rate and dependable operation. .


Features
• High flow rates exceeding 325 gallons per minute
  for maximum performance in your luxury applications

• All seals are carbon ceramic with Viton® elastomers for
  long-lasting performance, easily enduring prolonged heat
  and chemical exposure

• Multi-directional volute mountings provide the flexibility to
accommodate any configuration; 2”  suction

• Cool running 56 frame motor

 • Two-speed motor from 1.5 to 4 HP; with
  two-speed models, sanitization and heating can occur while
  maintaining lower running costs

• Specify an ultra efficient motor and our highest efficiency
  hydraulics versions help meet appliance efficiency regulations

• Reliable performance and long service life for more
  enjoyable ownership

• UL, TUV, CSA, and CE/VDE/GS certified





This energy efficient pump, Balboa's Niagara ( formerly Ultra Jet Ultimax),  meets and exceed the most strict level of municipal noise requirements. This pumps is intended as a replacement for common true 4.0 HP 230 volt side discharge pumps that use 2” unions at both the suction and discharge connections.   The pump is normally directly wired to receptacle of spa pack. Save your old pump’s cord so you have the correct connector.  Safety features include auto motor overheat shut off protection.  This pump is a 2-speed pump but can also be used as a single 1-speed 3 HP pump (230 VAC)

Comes complete with two 2" replacement unions.  Drain plug ensures no water is left in the pump body during storage, which is useful for hygienic reasons and also prevents freeze damage where applicable. All Niagara (formerly Ultimax)  pumps have discharge and suction nipples that allow for a side stream flow, for such purposes as an ozonator venturi. If your hot tub uses these nipples, they must first be drilled out on the new replacement pump before they become active.





The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor.  If the pump fails during this period we will ship a replacement and you may be required to return the defective pump. Warranty does not cover frost damage, damage as a result of running the unit dry  or damage caused by incorrect wiring or applying incorrect voltage..


Balboa is the largest spa parts manufacture in the world.  These pumps are NOT CHINESE and are proudly manufactured in the USA (Tustin, California)

comes with 2" pump unions

Specifications:

  • amps (min/max) = 16.4/4.1amps
  • rpm (min/max)= 1750/3400 rpm
  • 230VAC 60 Hz, 2 speed
  • frame = 56 (6.69" wide motor)
  • length = 15.82"
  • height = 8.83"
  • Connection side = 2"
  • warranty = 2 years

Flow Curve & Dimensions





Download Ultimax Spa Pump Technical Specification



We accept PayPal and Credit card (Visa or Mastercard).  If you are ordering multiple units and part, please call us to see if we can save you shipping cost for multiple item orders.

 No taxes to US residence!

Please allow 4-6 days for shipping via UPS Ground to USA or Canada.  You will be emailed a tracking number to the email address you provide us.  Expedited Shipping services are available!

Thank you for shopping Cedar Tubs Direct your #1 Hot Tub Parts Replacement store!




Add to Cart:



  • Model: C-558
  • Shipping Weight: 40lbs
  • 11 Units in Stock
  • Manufactured by: Balboa
