2 HP Spa Pump - Sta-Rite DuraJet/Balboa Cascades Hot tub Pump -230 VAC

2 HP Spa Pump - Sta-Rite DuraJet/Balboa Cascades Hot tub Pump -230 VAC

C-560

    2 HP 2-Speed Spa Pump 230 volts – Balboa Dura Jet - Cascades      Frame 48, 8.8/2.9 Amp motor, 2” side discharge wet end.  Formerly marked as Dura Jet (DJ)&n Read More
  • Shipping Weight: 30kgs
  • Manufactured by: Balboa
2 Units in Stock
$333.39



Item Description

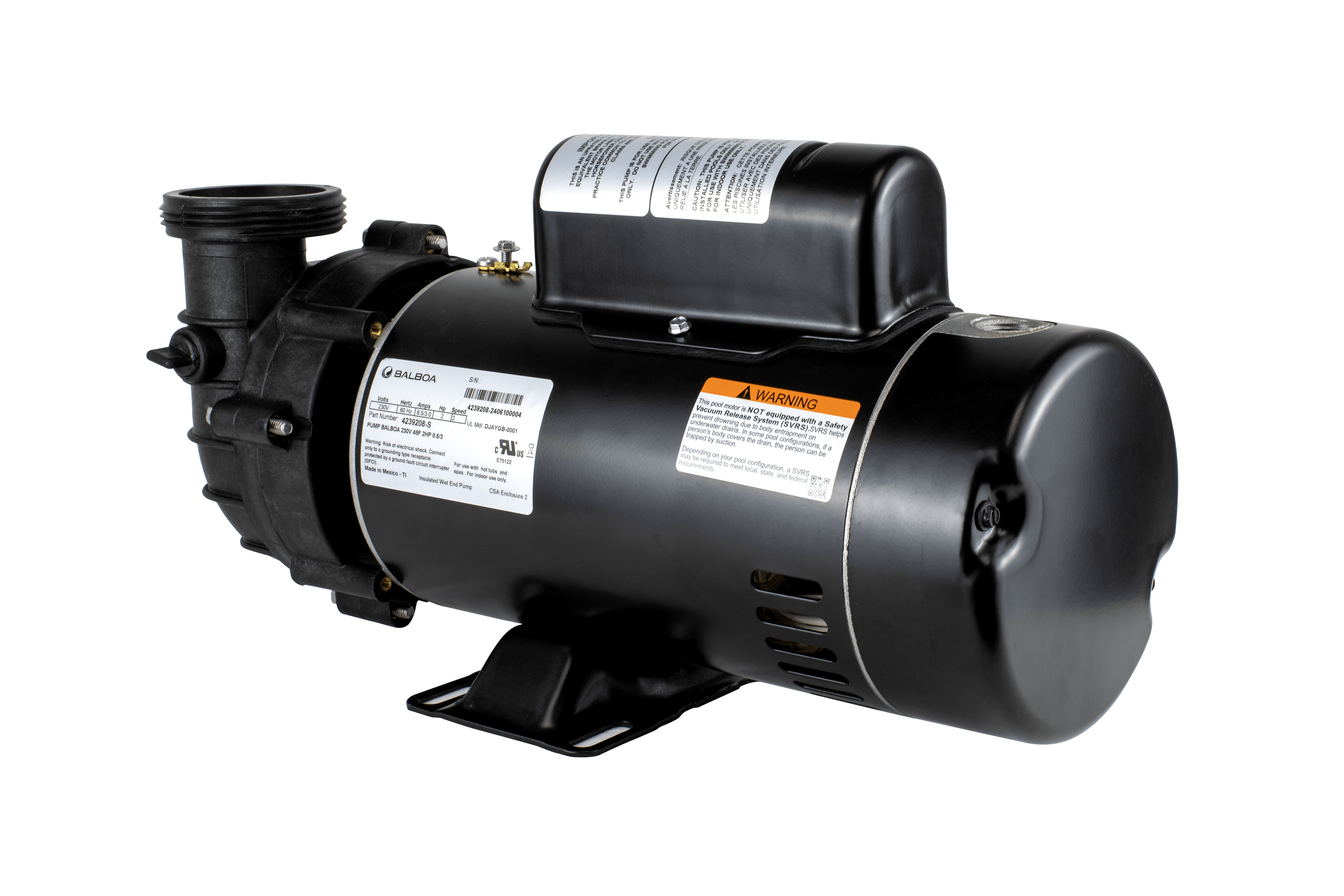

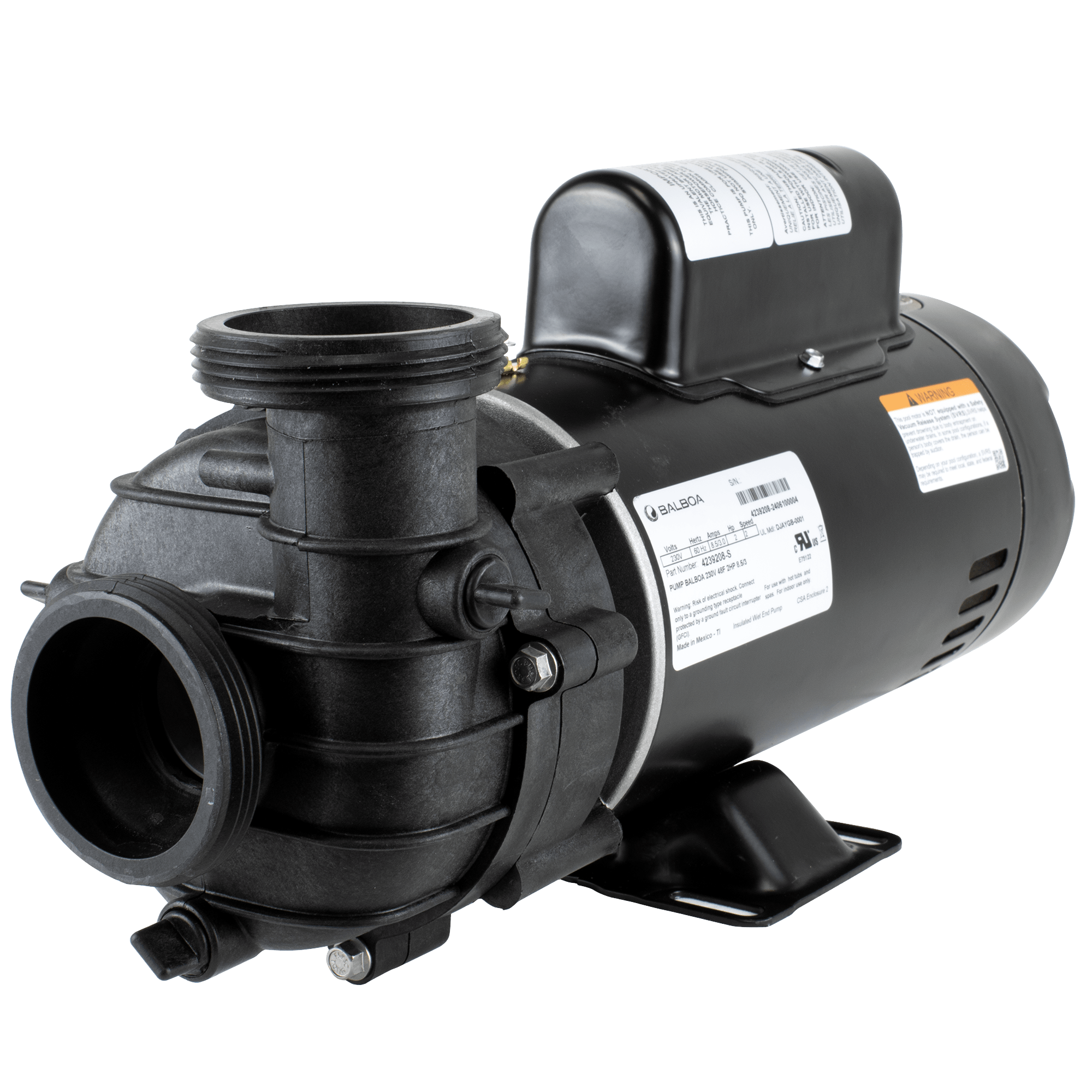

2 HP 2-Speed Spa Pump 230 volts – Balboa Dura Jet - Cascades



Cascades_Pump



Frame 48, 8.8/2.9 Amp motor, 2” side discharge wet end.

Formerly marked as Dura Jet (DJ) model by UltraJet, Vicco, Pentair and Balboa

Can also replace any 1-Speed 2 HP pump





Balboa's Dura Jet Cascades pumps provide consistant quality and long life, while still providing excellent performance, value pricing and
configuration flexibility all in a cost-effective package. With flow rates that
can exceed 210 gallons per minute, Dura Jet Pumps are ideal for value-
priced applications in any size spa.
With lower price points, ease of installation, high flow rates, and
energy efficient packages, Balboa's DuraJet Cascades pumps offer the options you
need and spa owners truly appreciate.

Features
• All seals are carbon ceramic with Viton® elastomers for long-lasting
performance, easily enduring prolonged heat and chemical exposure
• Multi-direction volute mounting and options deliver the greatest
  range of plumbing configurations
• Available in a compact 48 frame design
• Two-speed motor. With  two-speed models, sanitation and heating can occur while
  maintaining lower running costs. Low cost motor combination
  option available for economical spa systems
•  UL and CSA certified



Balboa's Dura Jet Cascades pumps meet and exceed the strictest level of municipal noise requirements. This pump is intended as a replacement for common 2 HP 220-240 volt side discharge pumps that use 2” unions.  This pump is a 2-speed pump but can replace any single 1-speed 2 HP pump.

Comes complete with two x 2" replacement unions.  Drain plug ensures no water is left in the pump body during storage, which is useful for hygienic reasons and also prevents freeze damage where applicable. All Dura Jet  pumps have discharge and suction nipples that allow for a side stream flow, for such purposes as an ozonator venturi. If your hot tub uses these nipples, they must first be drilled out on the new replacement pump before they become active.



1.5 HP 2-Speed Spa Pump 230 volts  Balboa Victoria Hot tub Pump Rotation Way

hot tub pump 4 way Rotation

The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor.  If the pump fails during this period we will ship a replacement and you may be required to return the defective pump.


Balboa is the largest spa parts manufacture in the world.  These pumps are NOT CHINESE and are proudly manufactured in the USA (Tustin, California)

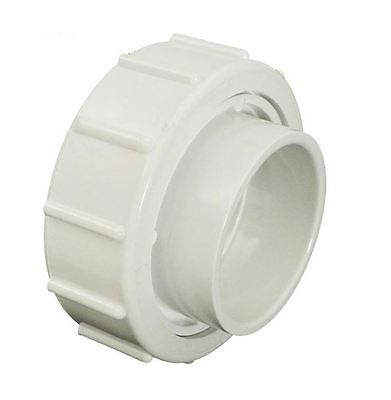

comes with 2" pump unions

HP 2-Speed Spa 2" pump unions

Specifications:

• amps (min/max) = 8.5/3 amps

• rpm (min/max)= 1750/3400 rpm

• 230VAC 60 Hz, 2 speed

• frame = 48 (6.5" wide motor)

• length = 17.23"

• height = 8.69"

• Connection side = 2"

• warranty = 2 years


Flow Curve & Dimensions

DuraJet_PerformanceCurveChart



DuraPumpMeasurements



Download Ultima Spa Pump Technical Specifications
