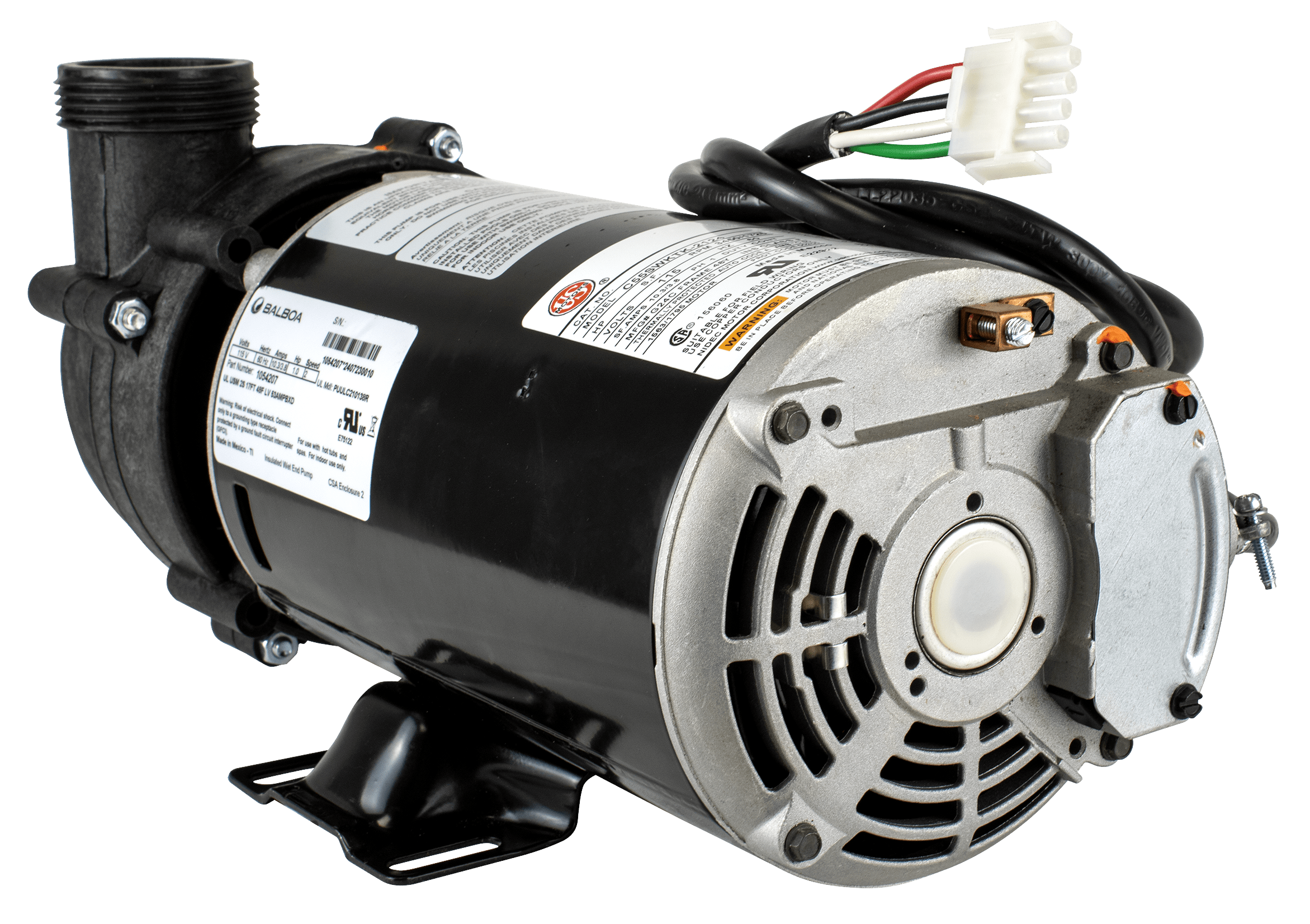

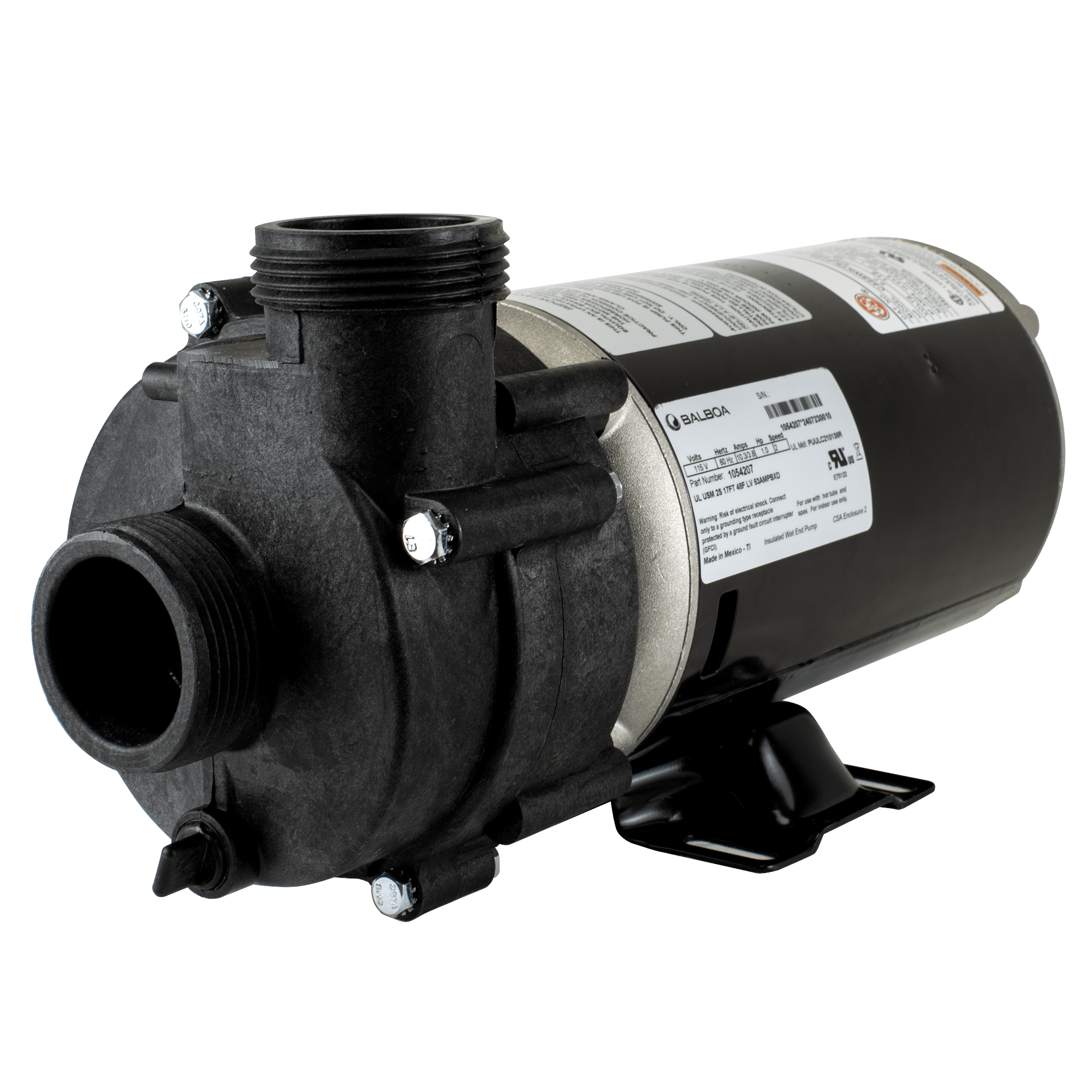

1 HP Spa Pump -Vico Ulitma by UltraJet / Balboa Victoria Hot tub Pump -120 VAC

$229.58

Add to Cart:

Ask a question










Item Description



1 HP 2-Speed Spa Pump 120 Volts - Balboa Ultima / Victoria



1 HP Hot Tub Pump

Frame 48, 10.3/3.8 Amp motor, 1-1/2” side discharge wet end.

Formerly marked as Ultima model by UltraJet, Vicco, Pentair and Balboa

Can Also be used as 1-Speed 1 HP Pump

1 HPR Spa Pump



 1 HP Ultima Victoria Pump (1.5 HPR)



Balboa's Victoria pumps provide long life, excellent performance, value pricing and

configuration flexibility all in a cost-effective package.

Flow rates for this pump can be up 100 gallons per minute (see below 1HP pump curves).



Features
• All seals are carbon ceramic with Viton® elastomers for long-lasting
performance, easily enduring prolonged heat and chemical exposure
• Multi-direction volute mounting and options deliver the greatest
  range of plumbing configurations
• Frame 48 motor design
• two-speed motor.
• 115 volt
• UL and CSA certified

This pump is intended as a replacement for common 1 HP 120 volt side discharge pumps that use 1-1/2" unions. The motor is a two speed pump but can also replace any single 1 speed 1HP pump (120 VAC). The pump is typically wired directly to the pump receptacles of a spa pack. Safety features include auto overheat shut off protection.

Comes complete with two x 1 1/2" replacement unions.  Drain plug ensures no water is left in the pump body during storage, which is useful for hygienic reasons and also prevents freeze damage where applicable. All Victoria (formerly Ultima)  pumps have discharge and suction nipples that allow for a side stream flow, for such purposes as an ozonator venturi. If your hot tub uses these nipples, they must first be drilled out on the new replacement pump before they become active.

1.5 HP 2-Speed Spa Pump 230 volts  Balboa Victoria Hot tub Pump Rotation Way

hot tub pump 4 way Rotation

The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor.  If the pump fails during this period we will ship a replacement and you may be required to return the defective pump.


Balboa is the largest spa parts manufacture in the world.  These pumps are NOT CHINESE and are proudly manufactured in the USA (Tustin, California)

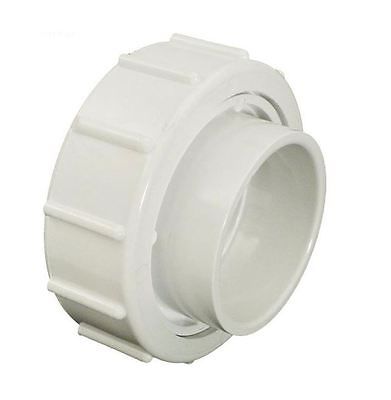

comes with 1 1/2" pump unions

HP 2-Speed Spa 2" pump unions

Specifications:

  • amps (min/max) = 10.3/3.8 amps
  • rpm (min/max)= 3450/1725 rpm
  • 110, 115, 120 VAC 60 Hz, 2 speed (optional 1 speed if you connect only to the high speed terminal)
  • frame = 48 (5.85" wide motor)
  • length = 15.32"
  • height = 7.58"
  • Connection side = 1 1/2"
  • warranty = 2 years

Flow Curve & Dimensions

1 hp hot tub pump curver



Download Ultima Spa Pump Technical Specifications

Payment Details

We accept PayPal and Credit card (Visa or Mastercard).  If you are ordering multiple units and part, please call us to see if we can save you shipping cost for multiple item orders.

 No taxes to US residence!

Shiping and Handling

Please allow 4-6 days for shipping via UPS Ground to USA or Canada.  You will be emailed a tracking number to the email address you provide us.  Expedited Shipping services are available!

your #1 Hot Tub Parts Replacement store!




Add to Cart:



  • Model: C-584
  • Shipping Weight: 22lbs
  • 27 Units in Stock
  • Manufactured by: Balboa
