Balboa VS501z Hot Tub Heater - VS501 Spa Pack- PN# 54356-03

$380.48

Add to Cart:

Ask a question





Hot Tub Heater Description

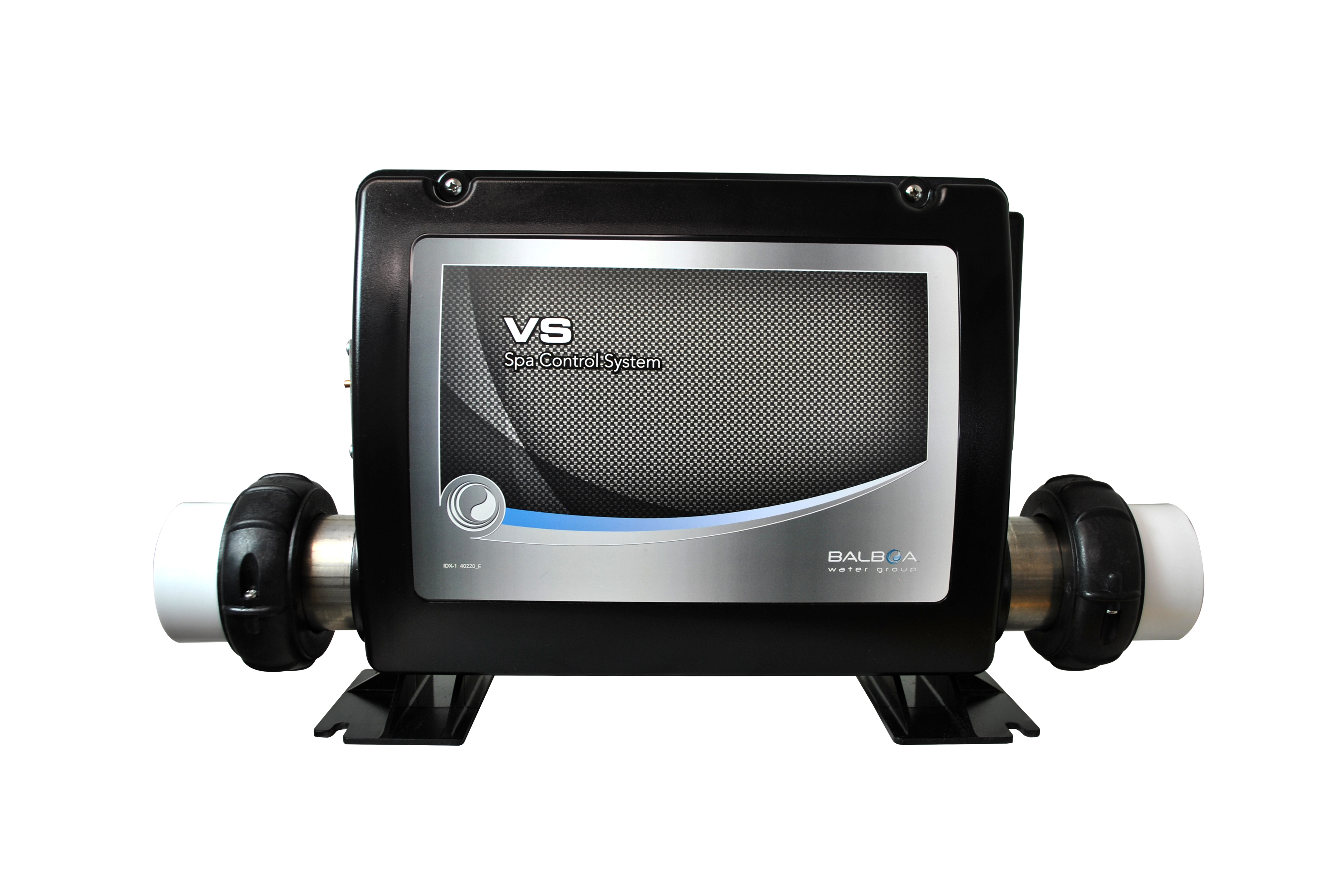

Balboa VS501z

5.5-1.5 Kw Digital Spa Pack
With Patented M7 technology - Made in America

Balboa VS501z

Sensor

Time to upgrade your old spa pack hot tub heater?

Balboa VS501z, uses simply the best spa pack technology on the market. Completely digital circuitry means less failures, more accurate heating range, and much simpler to use.

This Balboa Spa Pack works at either 120 VAC producing 1.5KW, or with a change of a jumper operates at 230 VAC producing 5.5 KW of heat. It fits any standard 2" or 1 1/2" plumbing making it ideal to upgrade almost any older mechanical spa pack.

Replaces any Spa Pack from other manufactures!

Don't be fooled, Balboa Spa Packs can replace any hot tub heater on the market including Gecko, Hot Springs, Len Gordon, Hydro Quip, LA Sas, Cal Spas, Coleman Spas, Beachcomber Spas, Artic Spas to name a few......

Built in programmable features such a cycle programming, sleep mode, economy mode and self diagnosis are just some of its features. Weather freeze ups are eliminated with the built in freeze protection system. It also has the ability to select how much current will be drawn allowing use of a 30 Amp breaker or 40 Amp, yet still deliver the full features.

It has receptacles for the following:

One 2-speed pump + one 1-speed pump or blower (not both)+ one circulation pump + one ozonator + one constant-on for Audio/Visual devices + one 12 volt light. All receptacles (except light) can be switched to supply 120 Volts or 230 Volts.

Comes complete with:

  • VS501Z pack including Stainless Steel portable heater with 2" heater tail pieces
  • Plasticized control instruction sheet; complete instruction manual for retrofit situations produced by Northern Lights.

The Patented M7 Technology removes the need for pressure sensors and remote heat sensors common on other older spa packs. This unique technology allows the spa pack to be positioned in any location or direction (before, after the pump or before or after the filter).  Unlike other hot tub heaters the flow direction does not matter.

What is the difference between a regular VS501 and VS 501Z?

Only the VS501(Z) is able to run either 220 VAC or 120 VAC accessories or a mixed combination! The latter & older models require accessories such as ozone to be the same voltage as the primary pump, limiting their applications. The VS501z is the most current model line from Balboa.

SPECIFICATIONS:

  • 10.56" High x 19.5" Long x 4.60" Deep
  • Comes with 12 V light that will support LED lighting
  • UL, CSA, and CE certification
  • Optional infrared water proof remote control is available ($125 extra)
  • 120 or 220 VAC ozone support
  • 120/240VAC @ 50/60 Hz
  • Pump 1= 12amp max; Pump 2= 12amp max; Blower= 8 amp max; Pump 1= 15 amp; Pump 2/Blower = 15 amp; Circulation Pump = 5 amp; Ozonator = 1 amp; A/V = 5 amp; Light = 12 v @ 1 amp
    2 years manufacturer warranty
  • NOTE you can only use a 2nd single-speed pump or blower not both! If small circulating pump is being used the flow through heater must deliver 23 USGPM or more.
  • MADE IN AMERICA not China

Works with any of these Top Side Controllers

Balboa VL400, Balboa VL401, Balboa VL402, Baloba VL403, Balboa VL404, Balboa VL406, Balbo VL406T, Balboa VL406U, Balboa VL200, VL240, VL260

Balboa VS501z

If you are looking for the most reliable tub replacement system on the market, then the Balboa VS501z with M7 technology is it. Their unsurpassed reliability is why Balboa is the world leader in Spa Pack manufacturing both in quality and reliability.



Balboa Spa Pack Features



Features Balboa VS501Z Balboa VS520SZ Balboa EL2000
5.5 Kw Heater 220 VAC X X X
Separate Optional Aux 5.5 Kw Heater X X X
240 VAC or 120 VAC X X 240 VAC
120/240 Volt output receptacle X X X
Separate voltage for ozone & blower common common X
2 -Speed Pump 1 X X X
1-Speed Pump 2   see note X
2-Speed Pump 2   X X
1-Speed Blower or Pump 3 X X X
Circulation Pump X X X
Ozone X X X
Audio Visual Equip X X X
12 Volt Light X X X
Light switchable to 12 volt or 120 VAC     X
Fiber Optic Wheel Light     X
Real Time Clock     X
Standard, Economy, Sleep Mode X X X
12 hour filter cycle X X X
24 hour filter cycle     X
Filter cycle program by time of day     X
Filter cycle increments     Fully Adjustable
Clean up cycle (filter & ozone on after use)     X
Ozone temp deactivation only when jets are on only when jets are on X
Freeze Protection X X X
Diagnostic messaging X X X
IR Dolphin Remote Control Option (short range) X X X
RF Station Wireless Remote Control (long range)     X
Wireless PC Remote Control via USB     X







Tech Support 1 800 by NLCT X X X
2year Warranty X X X

IMPORTANT:

Our on-staff engineer means you get more than just a quality product when you buy from us. Our engineer will help you before your purchase as well as during installation and will always be there for ongoing support afterwards, FREE OF CHARGE! Call us or email us and you will quickly see our difference!

Payment Method

We accept PayPal and Credit card (Visa or Mastercard).  If you are ordering multiple units and part, please call us to see if we can save you shipping cost for multiple item orders.

 No taxes to US residence!

shipping

Please allow 4-6 days for shipping via UPS Ground to USA or Canada.  You will be emailed a tracking number to the email address you provide us.  Expedited Shipping services are available!

Your #1 Hot Tub Parts Replacement Store!




Add to Cart:



  • Model: C-454
  • Shipping Weight: 5lbs
  • 13 Units in Stock
  • Manufactured by: C-454
