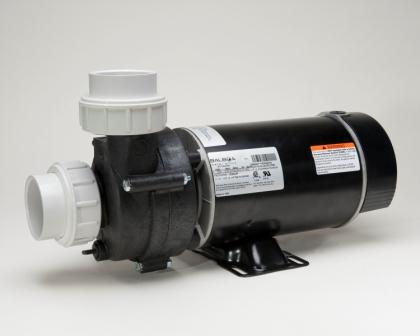

1.5 HP 2-Speed Spa Pump 120 volts – Balboa DuraJet
Frame 48, 13.5/3.7 Amp motor, 2” side discharge wet end.
Formerly marked as Ultima model by UltraJet, Vicco, Pentair and Balboa
Can also be used as a 1-Speed 1.5 Hp Pump
Balboa's DuraJet pumps provide long life, excellent performance, value pricing and
configuration flexibility all in a cost-effective package. With flow rates that
can exceed 230 gallons per minute, DuraJet pumps are ideal for value-
priced applications in any size spa.
With lower price points, ease of installation, high flow rates, and
energy efficient packages, Balboa pumps offer the options you
need and spa owners truly appreciate.
• All seals are carbon ceramic with Viton® elastomers for long-lasting
performance, easily enduring prolonged heat and chemical exposure
• Multi-direction volute mounting and options deliver the greatest
range of plumbing configurations
• Available in a compact 48 frame design
• two-speed motor. With two-speed models, sanitation and heating can occur while
maintaining lower running costs. Low cost motor combination
option available for economical spa systems
• 115 volt options for portable plug and play spa models
• UL and CSA certified
Balboa's DuraJet (formerly Vico) pumps meet and exceed the strictest level of municipal noise requirements. These pumps are intended as a replacement for common 1.5 HP 120 volt side discharge pumps that use 2” unions. This pump is a 2 speed pump but can also be used to replace any single 1 -speed 1.5 HP pump (120 VAC). The motor’s back is equipped to allow a Tecmark air switch to be installed, if required. Thus the pump can be used with older simple air-switch controls or it can be wired directly to the pump receptacles of spa pack. Safety features include auto overheat shut off protection.
Comes complete with two x 2" replacement unions. Drain plug ensures no water is left in the pump body during storage, which is useful for hygienic reasons and also prevents freeze damage where applicable. All Victoria (formerly Ultima) pumps have discharge and suction nipples that allow for a side stream flow, for such purposes as an ozonator venturi. If your hot tub uses these nipples, they must first be drilled out on the new replacement pump before they become active.
The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor. If the pump fails during this period we will ship a replacement and you may be required to return the defective pump.
Balboa is the largest spa parts manufacture in the world. These pumps are NOT CHINESE and are proudly manufactured in the USA (Tustin, California)
comes with 2" pump unions
• amps (min/max) = 13.8/3.7 amps
• rpm (min/max)= 1700/3400 rpm
• 115 VAC 60 Hz, 2 speed
• frame = 48 (5.85" wide motor)
• length = 15.32"
• height = 7.58"
• Connection side = 2"
• warranty = 2 years

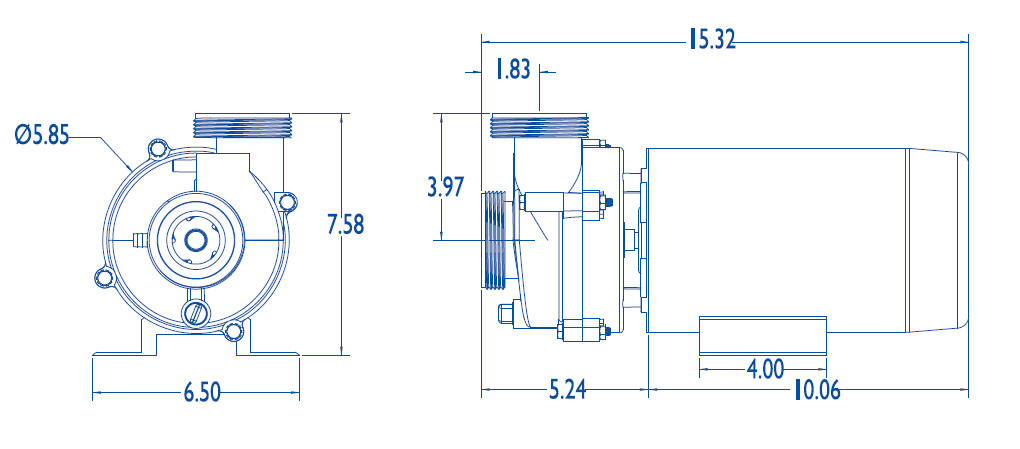

Flow Curve & Dimensions
Download Ultima Spa Pump Technical Specifications
