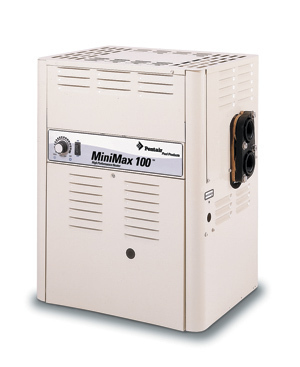

Pentair MiniMax DSi 100 Propane Pool & Spa heater 100,000 BTU

$900.00

Add to Cart:

Pentair MiniMax Propane Gas Pool & Spa heater

100,000BTU
Pentair DSi100 MiniMax Propane Gas
Heater 100,000 BTU
Ideal for above ground pools or hot tubs!

MiniMax 100 - manufactured by Pentair, now offers the most advanced heater available!!!

The MiniMax® 100 heater is a compact, self-contained unit with an output of 100,000 BTU?s and a high 82% thermal efficiency that keeps operating cost low while directing more produced heat to your pool instead of into the outside air..

MiniMax features a patented thermostatic bypass valve which minimizes condensation-related calcium scaling and corrosion preserving heat transfer efficiency, quiet, dependable operation from proven burner system and a service-friendly design that includes a bronze header system for long life and union connection fittings for fast draining and easy winterization.

Equipped with an electronic direct spark ignition for automatic control, and designed to be coneected to either a 230 volt or 120 volt 60 Hz power source (field changeable).

Features

The MiniMax 100 is a compact,low-profile heater that's big on efficiency, performance,and convenience. With an input of 100,000 BTUs, the MiniMax 100 is the perfect size for heating even the largest above ground pool or pool/spa combination
The MiniMax 100 is designed for fast heat-up, low operating costs, and long life. It's available in reliable direct-spark ignition or millivolt models, and in propane or natural gas versions. Best of all it costs surprisingly little to operate
The MiniMax 100 from Pentair makes extending your pool season, adding to your comfort, and maximizing your backyard enjoyment surprisingly easy and affordable. They heat up fast. They are economical to run. And they're built to last for many years
MiniMax's thermal efficiency is designed to operate as close to 100% as possible for minimum operating costs! This is achieved through an optimum combination of high-tech heat exchangers, unique combustion chamber design, burner assemblies and materials, and state-of-the-art heater insulation.
Computer Controls - The MiniMax's fully electronic operation provides "intelligent" controls that sense water temperature and pressure for optimum flow control.
Burner System - Natural Gas [NAT] or Propane [LPG]; features Pentair's long-life corrosion-resistant stainless steel burners for long, corrosion-free life, plus a integrated vent top for efficient combustion and exhaust for optimum ventilation and safety. Bronze headers for added durability
Ignition System - The MiniMax 100 offers the user-friendly DirectSparkT electronic ignition system for optimum performance. Simply connector to any 120 VAC or 220 VAC power source (cable not supplied).
Flow Control - Patented flow valve with long-life power element minimizes condensation, erosion, and scaling.
Combustion Chamber - High-tech ceramic fiber tile insulation located inside the clean burn combustion chamber ensures quick water heating; cool-to-the-touch exterior.
Cabinet - Maintenance free, metal construction, provided by a weatherproof powder-coated finish over top of an anodized aluminum exterior. Low-profile design with rounded corners for pleasing appearance.
Installation - The MiniMax 100 comes preready for use with all major brand pool/spa automatic controls, with easy service access to all controls behind hinged access doors.
Easy-to-install 1-1/2" NPT connections for easy installation, combined with a compact profile and a small unit footprint. Designed with universal connections that can be directly connected to recommended schedule 40 PVC or ABS pipe, MiniMax is compatible with most pre-existing or new installations.
CSA & UL listed
1 Year Manufacuture Warranty.

Specifications

Dimensions: 25 1/2" high x 19 11/32" long x 15 1/2" wide
Weight: 35-lbs.
Stove Body: Powder coated steel
Circulating Pipe Dimensions: 1 1/2" CPVC.
Requires 20-80 GPM flow
Ignition = Electronic
GAS= Propane

installation diagram

note- flue adapter required for indoor installation*

*This unit is designed for outdoor use only There is an indoor adapter kit available for an addional $175 USD!

Please call us any time for more information 1 800 759 8990!

We accept PayPal and Credit card (Visa or Mastercard). If you are ordering multiple units and part, please call us to see if we can save you shipping cost for multiple item orders.

No taxes to US residence!

Please allow 4-6 days for shipping via UPS Ground to USA or Canada. You will be emailed a tracking number to the email address you provide us. Expedited Shipping services are available!

Thank you for shopping Cedar Tubs Direct

Your #1 Hot Tub Parts Replacement Store!

Add to Cart:

Model: Pentair 460348
Shipping Weight: 50lbs
12 Units in Stock
Manufactured by: Balboa
