Laing Circ Pump - E14 AC spa pump - 40% less energy

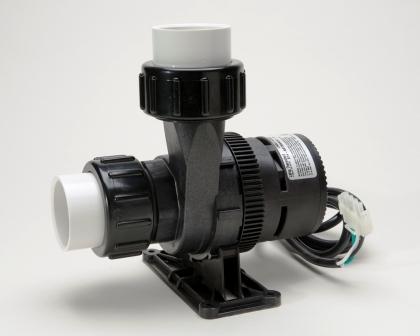

Laing E14 Circulation Pump 110 VAC

Laing EcoCirc E14

Features:

Get 150 watts of performance for only 108  watts of power
40% more efficient than standard induction motors
Electronically Commutated Motor (ECM)
Shaftless, Sealless, and Leak Proof
Dry Run Protection
Electronic Speed Control
Variable Speed - PWM Controllable
Open Impeller - Resistant to Clogging
Helps with CEC title 20 compliance
1/3 the weight (less than 4lbs)
Less noise (end 48 frame growl)
1/2 the size (8 inches vs. 16 inches)

Applications:
Water Circulation
Liquid Transfer
Ozone Treatment
Saltwater and Freshwater
Aquarium Circulation
General Purpose Pumping

The ecocirc® pumps’ highly efficient ECM (Electronically Commutated Motor) design results in significant energy savings
with improved performance: Through microprocessor technology the motor is provided the precise frequency and
voltage for optimum performance. A permanent magnet motor eliminates the requirement for input power to
magnetize the rotor, thus maximizing efficiency. This unique design offers superior starting torque when compared
with standard induction motor type pumps.

The Ecocirc
auto and vario were designed with the highly efficient electronically commutated permanent magnet motor (ECM technology).

Our revolutionary pump is designed to consume 40% less energy. Added variable speed technology offers further power savings.

The E14 pump is compact and lightweight, less than 5 lbs. It is whisper quiet (less than 50db) and programmable designed with the latest EC technology.

The flow rate dependent on the differential pressure control, adjusts the pump performance continuously and automatically to the requirements of the system.

Pump

• Capacities: 36 GPM
• Max Head: 10.5'
• 1 1/2" pipe connection
• Maximum Working Pressure: 50 PSI
• Maximum Temperature: 140 F
• Rotation: 360 degrees counter clockwise when
• viewed from the motor end

Motor

• Electronically Commutated AC/DC/AC Spherical Motor
• Canned Spherical Type Motor
• 230 Volt 110 Watts 60/50 Hz, 2100 RPM
• Automatic Overload Protection
• Low in Rush Current
• Dry Run Protection



The spherical motor design:

The only moving part of this pump type is a spherical rotor/impeller unit which is suspended on an extremely wear
resistant ceramic ball. Shaft seals or conventional bearing bushings with a shaft have been eliminated.

The only self realigning bearing in the small pump market has many advantages:

• The suspension on a ball eliminates any bearing play, even after years of use.
• The bearing is self-realigning. It is automatically lubricated and cooled by the system fluid.
• The rotor is magnetically centered on the bearing and can tilt to avoid blockage by small dirt particles. Even after a
long time of shut-off, a safe start-up is virtually guaranteed.
• The pump can be cleaned easily with typical household cleaners in the unlikely case of scale deposits.
• Step-less scale thermostats are optional.

Down Load Tech Specs
