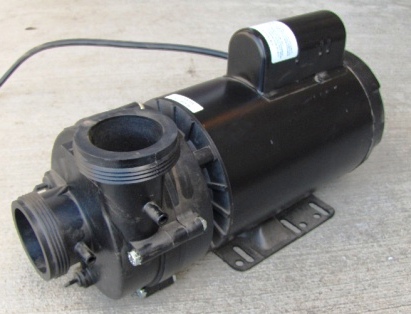

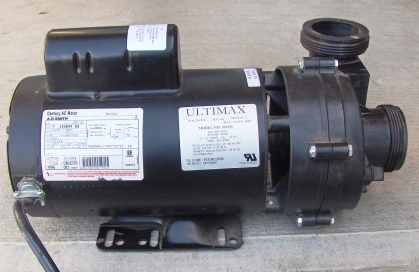

4 HP Spa Pump - UltraJet (Balboa) ULTIMAX - 220v-240v, 2 speed

$385.00














Balboa UltraJet ULTIMAX Pumps (Largest) 4HP 220/230VAC Pump














comes with 2" pump unions





This ultra quiet hot tub pump is one of the most energy efficient pump on the market? Pentair's Ultra Jet pumps meet and exceed the most strict level of manciple noise requirements. These pumps are ideal for whirlpool applications where quiet running and high performance are a necessity. This pump has 2 speeds and operated at 230 VAC. The low speed is ideal for circulation and filtering while the high speed will provide a powerful massage pressure for hot tubs and spas.

Note this pump is a true 4.0 HP motor (16 Amps). Be aware true HP ratings are calculated from the amps on the pump. Sticker ratings may indicate differently. Unfortunately the industry uses misleading HPR ratings which not an accurate measurement of true HP. Beware that pumps with "HPR" ratings are not accurate. For more information of pump rating call our engineer at 1 800 759 8990 ext 222.

Safety features include auto shut off protection in case of plugged suctions and high heat limit overload protection.

Comes complete with two x 2" replacement unions that can be easily be expanded to fit larger 2" standard PVC plumbing. Included is a hygienic drain plug that ensures no water is left in the pump body during storage, also preventing freeze damage where applicable. Also included with every UltraJet pump head is their unique venturi by pass ports. By drilling out the inside of these ports water can be by passed and used with accessories such as pump heat jackets or ozone systems.



The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor.

If you are looking for the best most reliable hot tub pump on the market then look no further. Pentair is the largest pool and spa plumbing manufacture in the world and the UltraJet line of spa pumps are simply the finest.



comes with 2" pump unions

Specifications:

  • amps (min/max) = 16.4/4.8 amps
  • rpm (min/max)= 1725/3450 rpm
  • 230 VAC 60 Hz, 2 speed
  • frame = 56 (6.5" wide motor)
  • length = 16.5"
  • height = 8.5"
  • port opening = 2"
  • warranty =2 years

  •   Download ULTIMAX pump Technical Specifications
