12 Watt Solar Panel- 12V for solar pump

$150.00

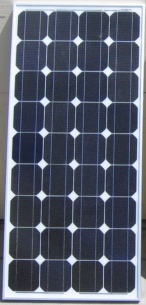

Solar Panel
12v x 12 Watt Monocrystalline Silicon























Monocrystalline Silicon Panels

Monocrystalline panels use crystalline silicon, a basic semiconductor material. Crystalline silicon is produced in large sheets that can be cut to a specific size and used as one large cell in a panel. Conducting metal strips are laid over the entire cell to collect electrons from the cell into an electrical current.

These panels are more expensive to produce than the polycrystalline panels . However, they are highly efficient and are often more cost-effective in the long run as a result. Monocrystalline panels are typically 15-18% efficient, meaning that for every unit of solar energy that hits the cell, the panel can convert 15-18% of this energy into electricity.   Where are Polycrystalline pannel are 12-14% efficient.

Specifiactions:

25W Solar Panel

Nominal Peak Power



12 Watt

Output power tolerance



+/-5%

Maximum Power Voltage



16.8 V

Maximum Power Current



1.49 A

Open-Circuit Voltage



21 .2 V

Short-Circuit Current



1.79 A

Solar Cell Efficiency



13 %

Module Efficiency



10 %

Length x Width x Height, Weight

13"x12"x1"

NOCT

50C +/-2

Maximum System Voltage

DC 1000V

Weight (Wind) Bearing Potential

60m/s (200kgs/sq.m)

Hailstone Impact Resistance

Steel ball dropped from 1m height

Certificates

ISO 9001



Solar Panel Warranty

Our mono-crystalline solar panels are warranted for 2 years against defects.

They also carry a 10 year 90% output guarantee and a 20 year 80% output guarantee.




Thank you for shopping Northern Lights Cedar Tubs!

Call us anytime:
1 800 759 8990


















Add to Cart:

  • Shipping Weight: 6lbs
  • 20 Units in Stock
